  • Description

Basic parameters
产品类型 Type 立式风幕柜 Refrigerated Multideck Cabinet 产品型号 Model BX5S
设计工况 Design condition 3(25℃,60%RH) 温度范围 Temperature range H1(1~10℃)
能效等级 Energy Efficiency Grade 3 制冷方式 Refrigerating system 风冷 Air-Cooling
长(mm) Width 1500/2000/2500/3750 custom 宽/深(L)Depth 800/900/1000 custom
高(mm) Height 1900/2050 custom 有效容积(L)Effective Volume -
柜体参数 Cabinet parameters
柜体/颜色 Cabinet /color 黑/白/灰 Black / White / grey custom 柜体外壳材料 External Cabinet material 镀锌板 SGCC
柜体内衬材料 Internal Cabinet material 镀锌板 SGCC 柜口高度(mm) front end heigth 360
发泡料 foaming 环戊烷 cyclopentane 搁板 Inside shelf 镀锌板 SGCC
搁板标配 Pallets 5 搁板承重 Pallet weight 100KG/m²
搁板承重 Pallet Bearing 150KG/m² 侧板 Side panel G:玻璃侧板 单面厚度23mm S:发泡侧板 单面厚度36mm
G: Glass Side Plate Thickness 23 mm S: Foamed Side Plate Thickness 36 mm
侧板玻璃丝印颜色 Silk Printing Color of Side Plate Glass 银灰色 Silver gray 玻璃 Glass 中空镀膜玻璃 19mm LOW-E hollow glass
底脚 Foot 地脚螺栓+脚轮 Foundation bolt & Castor wheel 夜帘 Night curtain 减速夜帘 Deceleration curtain
毛重(kg) Gross weight 180KG/1000mm
制冷系统 Refrigerating system
压缩机 Compressor 艾默生/松下 Emerson/Panasonic custom 蒸发温度 Evap Temp ℃ -10℃
制冷剂 Refrigerant R404A 制冷剂灌注量(g)Refrigerant charge -
蒸发器 Evaporators 铜管铝翼翅片式 Copper Tube with aluminum fins 冷凝器 Condenser 铜管铝翼翅片式 Copper Tube with aluminum fins
节流方式 Throttle modes 膨胀阀 danfoss 温度控制 Temperature control 电子式 Electronic temperature controller
除霜 Defrost 定时自然除霜 Off-Cycle defrost 融霜水处理 Defrost water treatment 排水管 Drain pipe
电气参数 Electric parameter
冷凝风机 Condenser Fan motor 根据机组配备 Depending on unit allocation 蒸发风机 Evaporating fan 依必安派特 EBM
照明灯 Lighting Canopy & Shelf LED白色 white 合明光电 X-union 输入功率(W) Input Power 288W
电压插头 Plug 16A 电压 Plug 220V/50HZ, 380V

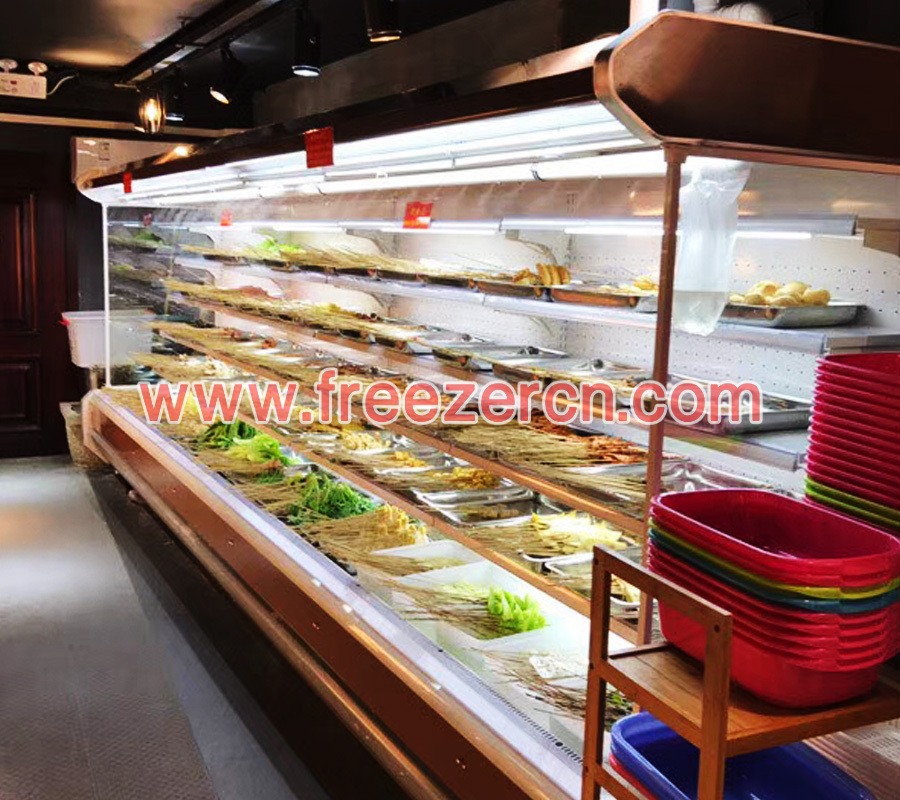

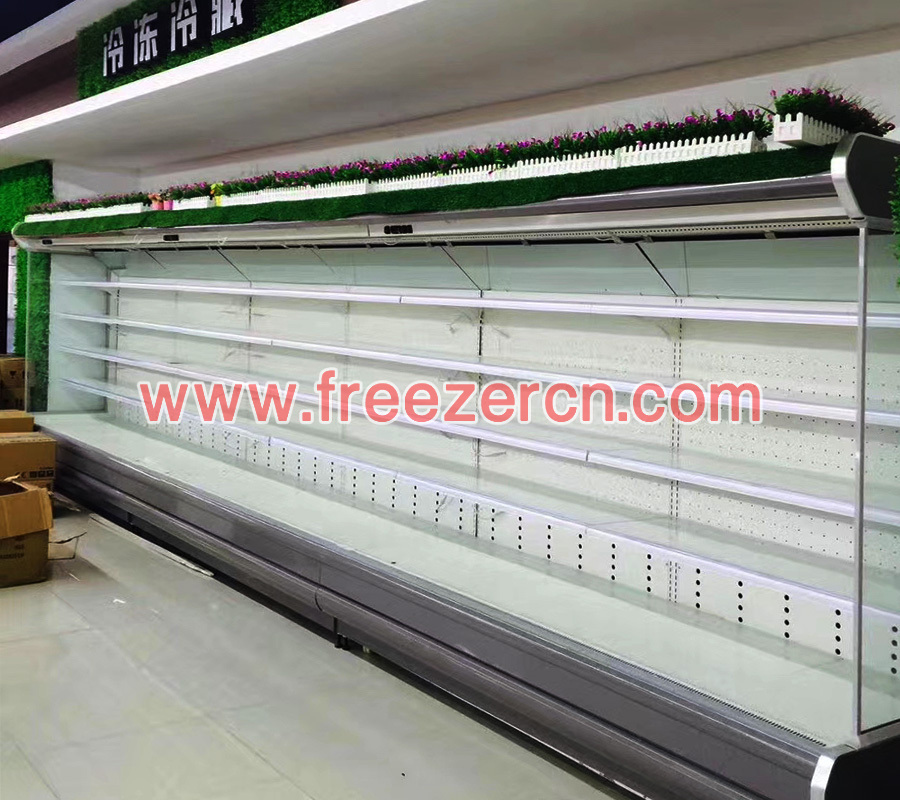

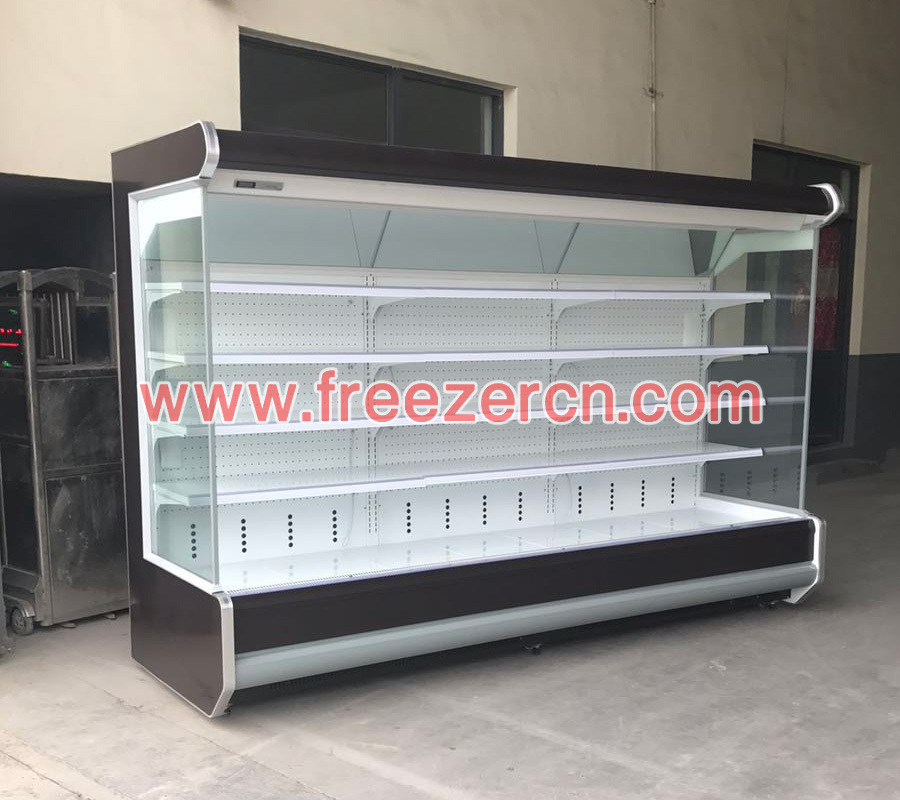

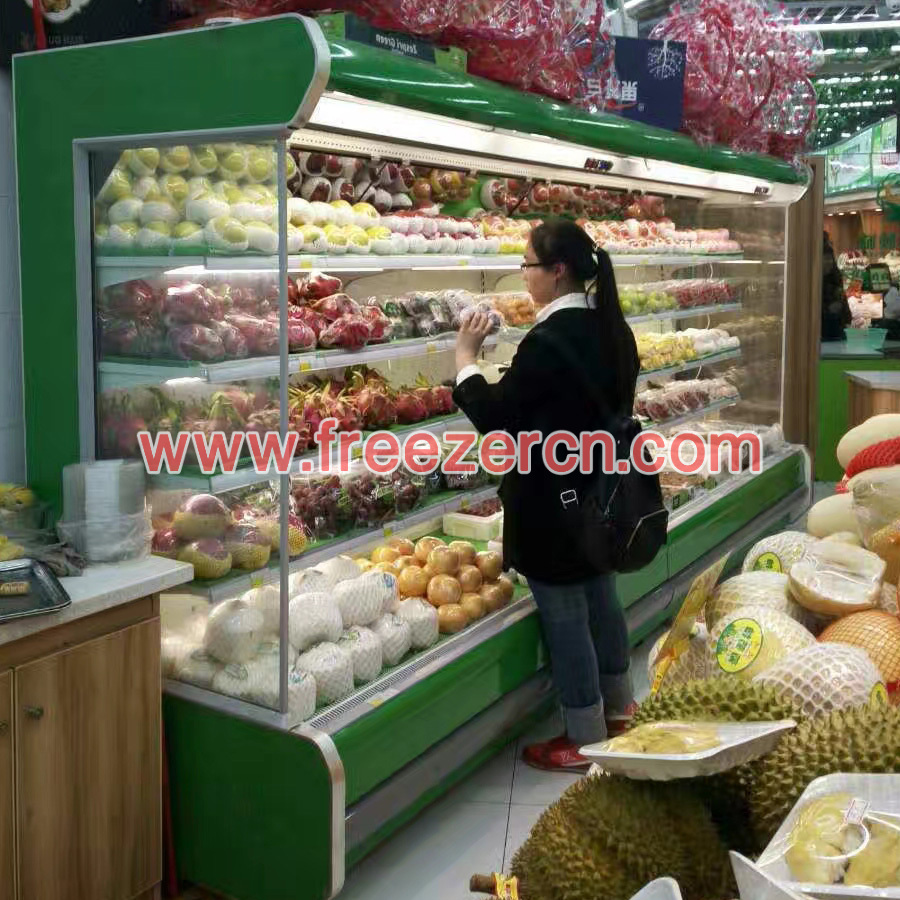

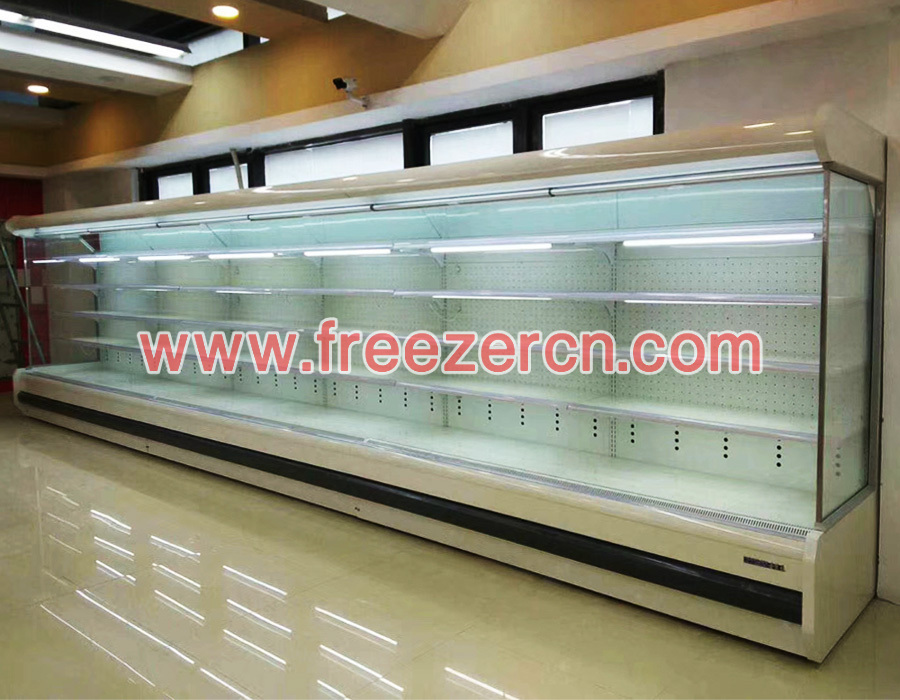

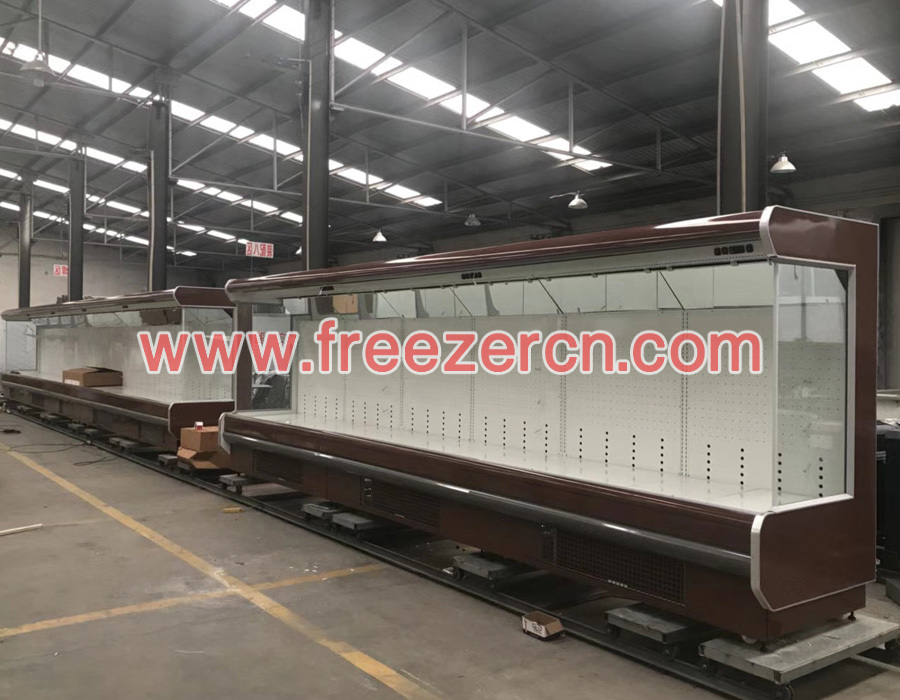

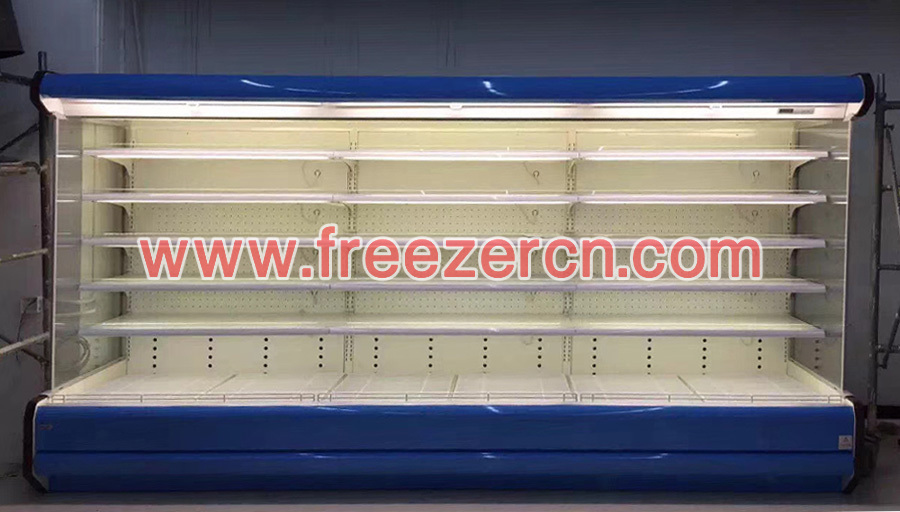

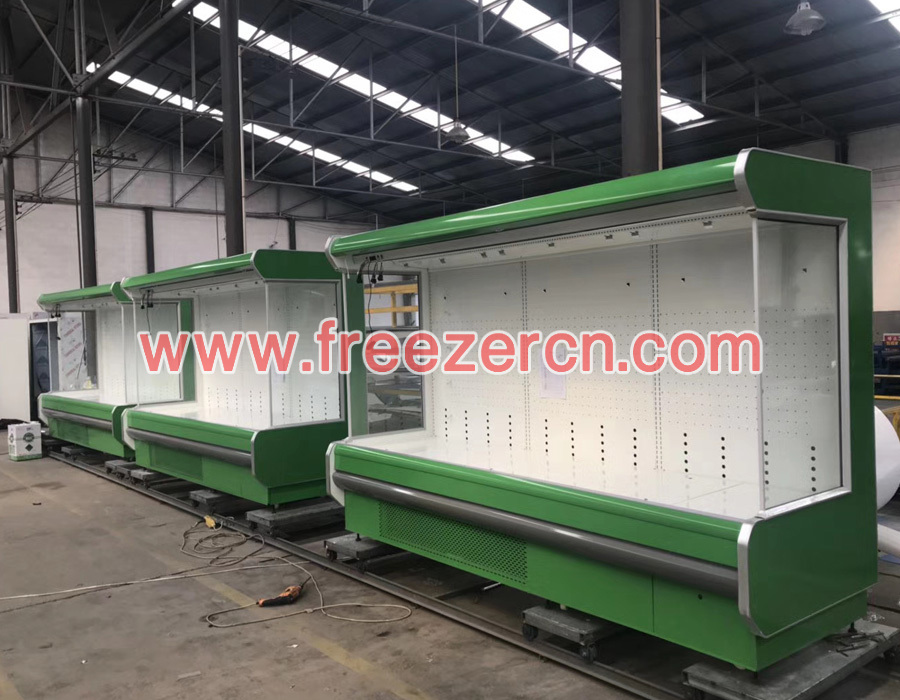

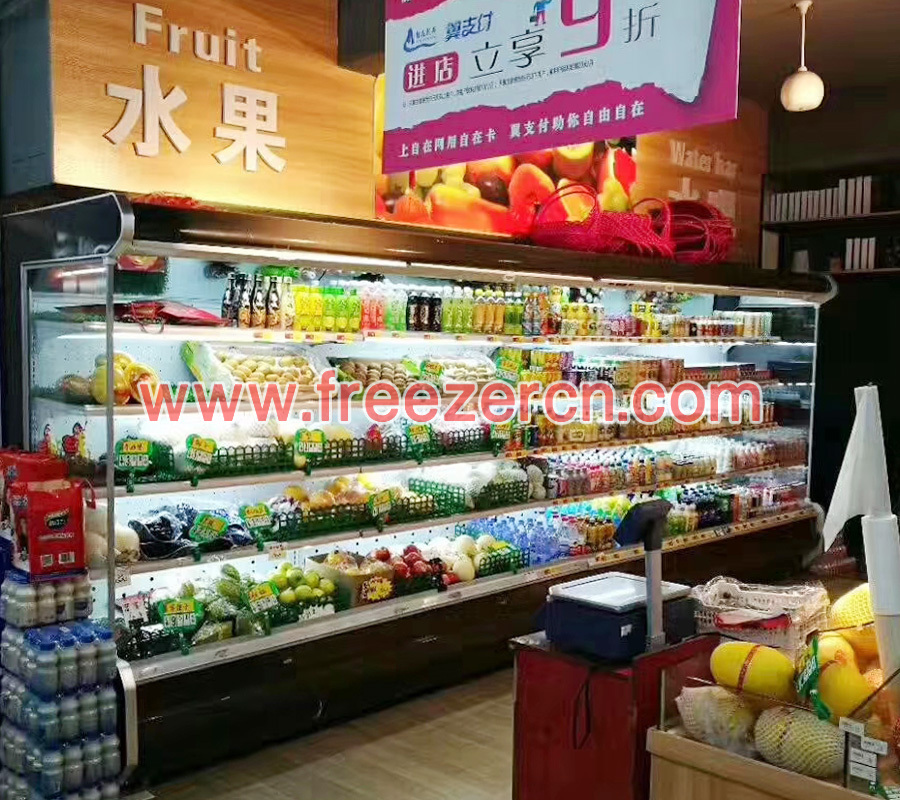

RX 实物图


RX 实物图



















Instruction

■ The refrigerator has compact structure, smooth lines, luxurious appearance and European style.;
■ Imported famous brand units, split/integrated optional, truly low noise, high energy efficiency, environmental protection and energy saving, safety, stability;
■ The side panel is designed with hollow toughened glass, which is highly effective anti fog, and further enhances the display effect of objects in the cabinet.;
■ The cabinet is made of stainless steel, corrosion resistant, easy to clean, easy to use and does not contaminate food.;
■ The multi-functional shelf can be assembled freely, and the front side and the bottom of the shelf have built-in energy-saving lamps, which can be adjusted arbitrarily according to the display items, showing the best display effect.;
■ The whole polyurethane foam technology, environmental protection foam material, high strength, high density, energy saving and electricity saving.;
■ Microcomputer automatic temperature control technology, automatic defrosting system, less error, easier operation, more accurate temperature control;
■ The unique waterfall micro air supply design ensures that the products are evenly distributed and the refrigeration effect is better.;
■ The imported balanced thermal expansion valve improves the utilization rate of evaporator.;
■ The pull-out air curtain is installed at night to save energy and electricity.;
■ The asymmetric eddy cooling air curtain, the large area pure copper tube evaporator, the refrigeration is more uniform, the speed is quicker.;
■ Streamlined metal strake is inlaid, no deformation, corrosion resistance, the appearance is more luxurious style.;
■ Built-in air curtain with casters, easy to move and use; non-fluorine environmental protection refrigerant, environmental damage coefficient is zero, truly achieve green environmental protection;
■ Wide Climate Band and Wide Voltage Band with Dual Width Design. It is not affected by region, temperature and voltage. It runs freely all the year round. It is more comfortable to use.。

Application area

Our products are widely used in supermarkets, convenience stores, major hotels, hotels, restaurants, Chinese and Western restaurants, shopping malls, hospitals, pharmacies, government units, Stone's stores, school canteens, cakes, cakes, bars, cafes, KTV, fruit juice cold drinks, beer houses, night stalls, tea and fruit, wholesale markets for agricultural products. It is the best choice for the refrigeration and refrigeration display food and beverage equipment in the above comprehensive places to improve the purchase intention.。
