 POSITION：DCAMS » Medical ultralow temperature freezer » -86~-150℃ Ultralow temperature Freezer » YW-04-Horizontal-105°C and -135°C ultra-low temperature medical freezer
-86~-150℃ Ultralow temperature Freezer Similar products

  • Description

【产品名称】：YW-04-卧式-105℃和-135℃超低温医用冷冻柜

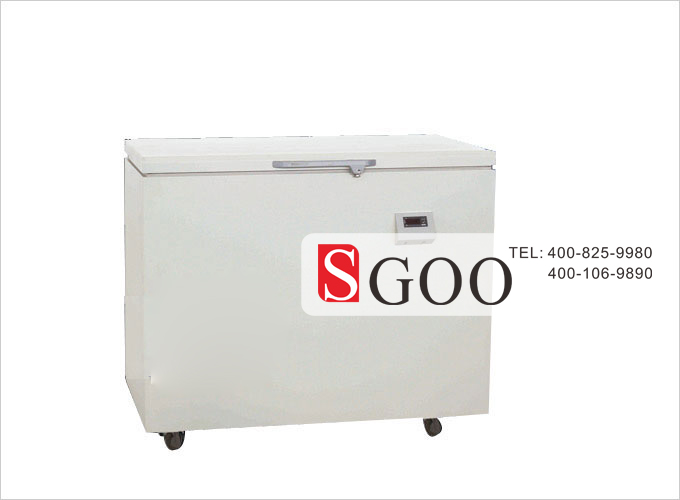

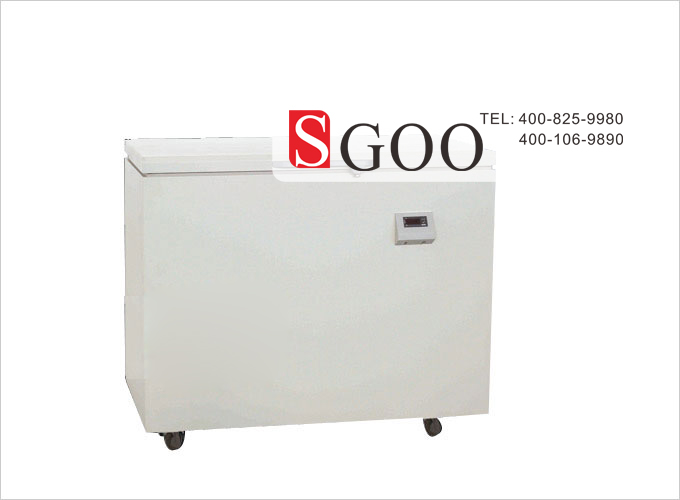

【产品图片】





【产品参数】

产品名称

型号

外部尺寸(mm)

内部尺寸(mm)

电压(V/Hz)

功率
(W)

箱内温度
(℃)

气候
类型

有效容积(L)

净重(Kg)

宽/W

深/D

高/H

宽/W

深/D

高/H

YW-04-卧式-105℃和-135℃超低温医用冷冻柜

YW-04-A

1270

780

965

500

400

560

220/50

550

-60℃～-105℃

N

118

108

YW-04-B

1270

780

965

500

400

560

220/50

550

-86℃～-135℃

N

118

108


【产品介绍】

用于储存生物制品、药品、试剂、疫苗等。
适用于医院、药房、制药厂、疾病预防防控中心、卫生所以及科研机构。

★温度和湿度：
·采用高精度传感器控制、显示、报警
·风冷，微电脑控制，数字温度显示精
度0.1℃，箱内温度控制在2℃~8℃范
围内
·可根据要求，配置温湿度显示，记录
及数据传输，满足GSP需求。

★安全保障：
·具备高低温报警、断电报警、开门报
警、传感器故障报警、备用电池故障
报警五种故障报警功能
·具备声音蜂鸣报警、灯光闪烁报警、
远程短信报警三种报警方式
·开机延时保护，避免同时启动造成电
流过大影响其他设备及线路故障

★制冷系统：
·名牌压缩机，无氟环保高效制冷剂
·采用德国EBM静音高效蒸发风机、冷
凝风机，性能优越
·高效内冷系统设计，制冷速度快，温
度更均匀
·采用新材料密封条设计，保温性能好

★人性化设计：
·内置可调节搁架，方便使用
·安全门锁设计，防止随意开启
·内置蓄电池，断电报警48小时（可选配）
·内置照明灯
·自动除霜功能，免除了人工化霜，方
便使用
·LED温度显示屏幕，便于观察
·内外箱选用便于清洁、耐冲击、耐腐
蚀材料，应对各种使用环境
